Resistor Calculator
To calculate and check resistance of the resistor by colors. This form is available for 4 and 5 color bracelets.

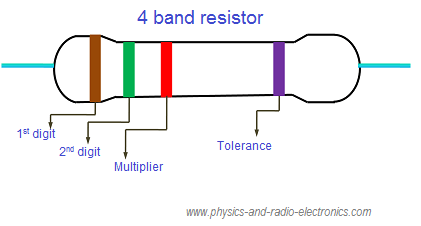

Resistor with 4 Color Bracelets

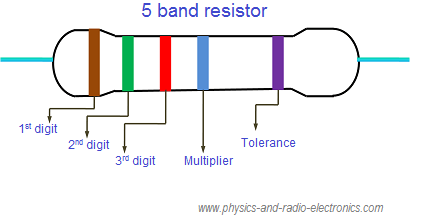

Resistor with 5 Color Bracelets
To calculate and check resistance of the resistor by colors. This form is available for 4 and 5 color bracelets.
| Color | Bracelet 1 | Bracelet 2 | Bracelet 3 | Bracelet 4 | |
|---|---|---|---|---|---|
| Black | 0 | 0 | 10**0 | - | |
| Brown | 1 | 1 | 10**1 | - | |
| Red | 2 | 2 | 10**2 | - | |
| Orange | 3 | 3 | 10**3 | - | |
| Yellow | 4 | 4 | 10**4 | - | |
| Green | 5 | 5 | 10**5 | - | |
| Blue | 6 | 6 | 10**6 | - | |
| Purple | 7 | 7 | 10**7 | - | |
| Gray | 8 | 8 | 10**8 | - | |
| White | 9 | 9 | 10**9 | - | |
| Gold | - | - | 10**-1 | 5% | |
| Silver | - | - | 10**-2 | 10% | |
| No Color | - | - | - | 20% | |
| Color | Bracelet 1 | Bracelet 2 | Bracelet 3 | Bracelet 4 | Bracelet 5 | |
|---|---|---|---|---|---|---|
| Black | 0 | 0 | 0 | 10**0 | - | |
| Brown | 1 | 1 | 1 | 10**1 | 1% | |
| Red | 2 | 2 | 2 | 10**2 | 2% | |
| Orange | 3 | 3 | 3 | 10**3 | - | |
| Yellow | 4 | 4 | 4 | 10**4 | - | |
| Green | 5 | 5 | 5 | 10**5 | 0.5% | |
| Blue | 6 | 6 | 6 | 10**6 | 0.25% | |
| Purple | 7 | 7 | 7 | 10**7 | 0.1% | |
| Gray | 8 | 8 | 8 | - | - | |
| White | 9 | 9 | 9 | - | - | |
| Gold | - | - | - | 10**-1 | 5% | |
| Silver | - | - | - | 10**-2 | 10% | |
